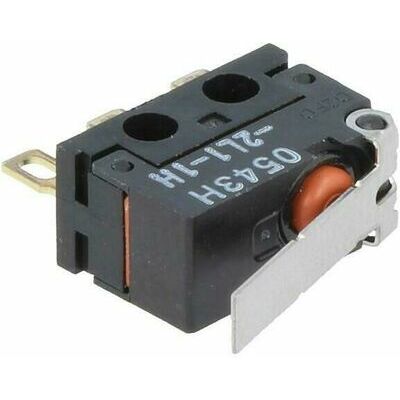

   | Microswitch SNAP ACTION; 2A/125VAC; 2A/30VDC; with lever; SPDT5.76€/ gab.Cena ieskaitot PVN 21%
|
Produkta apraksts
| Manufacturer: | OMRON Electronic Components |
| Type of switch: | microswitch SNAP ACTION |
| AC contacts rating @R: | 2A / 125V AC |
| DC contacts rating @R: | 2A / 30V DC |
| Switches features: | with lever |
| Contacts configuration: | SPDT |
| Switching method: | ON-(ON) |
| Number of positions: | 2 |
| Manufacturer series: | D2FD |
| Stable positions number: | 1 |
| IP rating: | IP60 |
| Leads: | for soldering |
| Body dimensions: | 12.8x6x6.5mm |
| Mechanical durability: | 300000 cycles |
| Operating temperature: | -20...70°C |
| Operating Force: | 0.65N |
| Lever length: | 13mm |
| Electrical life: | 30000 cycles |
| Contact plating: | silver plated |
| Terminal pitch: | 5.08mm |
Parametri
| Vienības svars: | 0.001 kg |
|---|---|
| Minimālais pasūtījums: | 1 |
