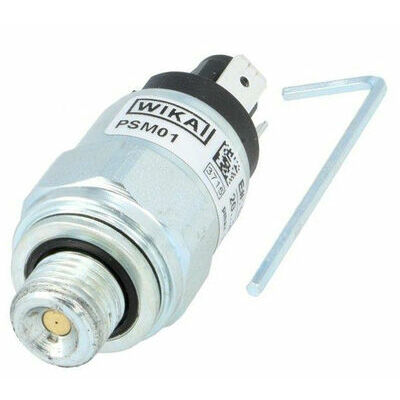

 | Module: pressure switch; relative pressure; OUT 1: SPDT; PSM0165.27€/ gab.Cena ieskaitot PVN 21%
|
Produkta apraksts
| Manufacturer: | WIKA |
| IP rating: | IP00 |
| Operating temperature: | -20...80°C |
| Manufacturer series: | PSM01 |
| Mounting: | G1/4" |
| Operating pressure: | max. 350bar |
| Switched voltage: | 5...50V AC |
| Switched voltage: | 5...50V DC |
| Contact current max.: | 2A |
| Type of module: | pressure switch |
| Controlled parameter: | relative pressure |
| The programming method: | adjusting screw |
| Regulation for output 1: | ON-OFF |
| Pressure setting range: | 20...200bar |
| Kind of output 1: | SPDT |
Parametri
| Vienības svars: | 0.091 kg |
|---|---|
| Minimālais pasūtījums: | 1 |
