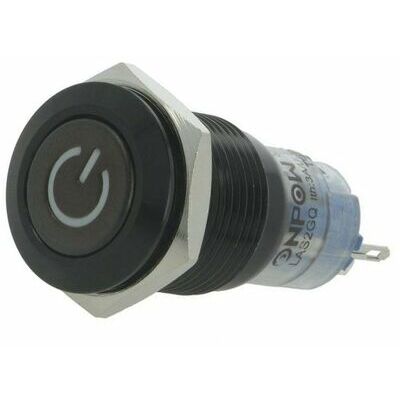

   | Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP4012.18€/ gab.Cena ieskaitot PVN 21%
|
Produkta apraksts
| Manufacturer: | ONPOW |
| IP rating: | IP40 |
| Related items: | M12-16F |
| Related items: | M20-11D |
| Body material: | aluminium |
| Illumination: | LED |
| Illumination: | point |
| Operating temperature: | -20...55°C |
| Mounting hole diameter: | Ø16mm |
| Number of positions: | 2 |
| Ring shape: | rounded |
| Mechanical durability: | 200000 cycles |
| Test voltage: | 2kV |
| Max. contact resistance:: | 50mΩ |
| Leads: | for soldering |
| Electrical life: | 50000 cycles |
| Contact material: | silver alloy |
| Type of switch: | vandal resistant |
| Contacts configuration: | SPDT |
| AC contacts rating @R: | 0.5A / 220V AC |
| DC contacts rating @R: | 1A / 24V DC |
| Switching method: | ON-ON |
| Stable positions number: | 2 |
| Operating Force: | 4N |
| Illumination voltage: | 24V |
| Button marking: | POWER |
| Body colour: | black |
| Backlight colour: | yellow |
| Button shape: | flat |
Parametri
| Vienības svars: | 0.009 kg |
|---|---|
| Minimālais pasūtījums: | 1 |
